含有特种纤维夹层的乒乓球拍底板动特性与机制

阴甜甜; 郝莉菱; 赵莘量; 付志强; 刘持栋; 何山

doi:10.13801/j.cnki.fhclxb.20230703.002

含有特种纤维夹层的乒乓球拍底板动特性与机制

doi: 10.13801/j.cnki.fhclxb.20230703.002

1.
西北工业大学　体育部，西安 710072
2.
西北大学　体育教研部，西安 710069
3.
西北工业大学　材料学院，西安 710072
4.
西安依山源体育用品有限公司，西安 710065

基金项目: 国家自然科学基金(52172100)

详细信息

通讯作者:
刘持栋，博士，副研究员，硕士生导师，研究方向为陶瓷基复合材料与工程应用技术　E-mail: liuchidong@nwpu.edu.cn

中图分类号: TB332；TS952.3
计量
- 文章访问数: 655
- HTML全文浏览量: 370
- PDF下载量: 37
- 被引次数: 0
出版历程
- 收稿日期: 2023-05-17
- 修回日期: 2023-06-15
- 录用日期: 2023-06-21
- 网络出版日期: 2023-07-04
- 刊出日期: 2024-03-01

Dynamic characteristics and mechanisms of table tennis blades with the inclusion of special fiber laminates

1.
Department of Physical Education, Northwestern Polytechnical University, Xi'an 710072, China
2.
Department of Physical Education and Research, Northwest University, Xi'an 710069, China
3.
School of Materials Science and Engineering, Northwestern Polytechnical University, Xi'an 710072, China
4.
Xi'an Yishanyuan Sports Equipment CO., LTD., Xi'an 710065, China

Funds: Natural Science Foundation of China (52172100)

摘要

摘要: 采用化学气相工艺技术，在碳纤维布表面原位生成具有特殊性能的微观涂层，进而将这种纤维布引入到乒乓球拍底板的夹层结构中，实现了底板动特性的调节。采用有限元仿真技术和非接触式模态测试技术，对引入特种纤维夹层的乒乓球拍底板开展了模态分析和测试。对应不同的纤维夹层，底板的一阶和二阶固有频率分别可以在115~127 Hz范围内和179~198 Hz范围内调节。揭示了特种纤维夹层对底板动特性的影响，证明了有限元仿真技术和非接触式模态测试技术在底板动特性研究中的可行性，为更科学、更全面地设计乒乓球拍底板提供了新的思路。
- 乒乓球拍底板 /
- 特种纤维夹层 /
- 化学气相工艺 /
- 动力学性能 /
- 非接触模态测试
Abstract: Several series of special fiber laminates with different performance were designed and fabricated by chemical vapor deposition method. The dynamic responses of table tennis blades were found adjustable with the inclusion of different fiber laminates. The dynamic characteristics and mechanisms of the blades were analyzed and measured by finite element method (FEM) and non-contact mode measurement method. The first and second order frequencies of the blades can be adjusted in the range of 115-127 Hz, and 179-198 Hz, respectively, which cover the performances of most popular market products. The FEM and non-contact mode measurement method are both proved to be feasible on designing and studying the characteristics of table tennis blades.
- table tennis blades /
- special fiber laminate /
- chemical vapor deposition /
- dynamic characteristics /
- non-contact mode measurement

HTML全文

图 1 乒乓球拍底板结构示意图

Figure 1. Schematic structure of a table tennis blade

下载: 全尺寸图片幻灯片

图 2 纤维表面涂层微观形貌：(a) 低织构碳涂层；(b) 氮化物涂层

Figure 2. Micromorphology of the coatings on carbon fibers: (a) Low texture carbon coating; (b) Nitrogen ceramic coating

下载: 全尺寸图片幻灯片

图 3 乒乓球拍底板的有限元模型

Figure 3. Finite element model of a table tennis blade

下载: 全尺寸图片幻灯片

图 4 非接触式模态测试设备

Figure 4. Non-contact mode measurement equipment

下载: 全尺寸图片幻灯片

图 5 通过有限元仿真得到的底板典型模态图：(a) 一阶模态；(b) 二阶模态；(c) 三阶模态

Figure 5. Typical vibration modes of a blade acquired by finite element method: (a) First order mode; (b) Second order mode; (c) Third order mode

下载: 全尺寸图片幻灯片

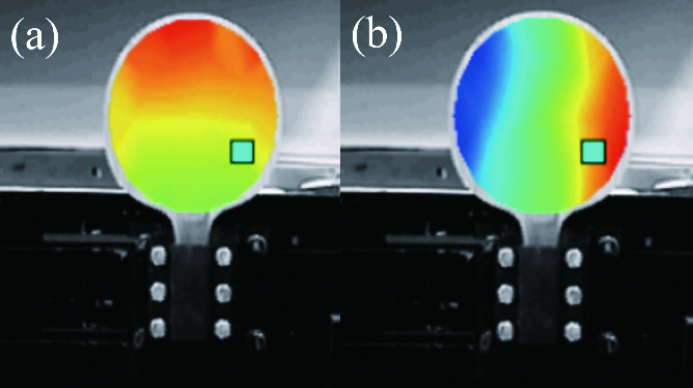

图 6 实验测得的S1底板一阶和二阶模态：(a) 一阶模态；(b) 二阶模态

Figure 6. First and second order modes of S1 blade acquired by non-contact mode measurement: (a) First order mode; (b) Second order mode

下载: 全尺寸图片幻灯片

图 7 实验测得的VISCARIA底板一阶和二阶模态：(a) 一阶模态；(b) 二阶模态

Figure 7. First and second order modes of the VISCARIA blade acquired by non-contact mode measurement: (a) First order mode; (b) Second order mode

下载: 全尺寸图片幻灯片

图 8 实验测得的林高远ALC型号底板一阶和二阶模态：(a) 一阶模态；(b) 二阶模态

Figure 8. First and second order modes of the Lin Gaoyuan ALC blade acquired by non-contact mode measurement: (a) First order mode; (b) Second order mode

下载: 全尺寸图片幻灯片

图 9 实验测得的赛博6型号底板一阶和二阶模态：(a) 一阶模态；(b)二阶模态

Figure 9. First and second order modes of the Cyber Shape Carbon blade acquired by non-contact mode measurement: (a) First order mode; (b) Second order mode

下载: 全尺寸图片幻灯片

图 10 S1 (a)、S2 (b)和S3 (c)底板所用纤维表面涂层的微观形貌

Figure 10. Microstructure morphologies of the coatings on the fibers in sample: (a) S1; (b) S2; (c) S3

下载: 全尺寸图片幻灯片

表 1 乒乓球拍底板编号及特种纤维夹层结构参数

Table 1. Fiber lamination parameters of blade samples

Sample	Fiber coating	Thickness of fiber lamination/mm
S0	None	0.18-0.19
S1	Low texture carbon	0.18-0.20
S2	High texture carbon	0.19-0.22
S3	Nitrogen ceramic	0.20-0.22

下载: 导出CSV

表 2 底板有限元分析所用材料性能

Table 2. Material parameters of blades for finite element analysis

Materials	Density/(g·cm⁻³)	Elastic modulus/GPa			Poisson's ratio			Shear modulus/GPa
Materials	Density/(g·cm⁻³)	E₁	E₂	E₃	ν₁₂	ν₁₃	ν₂₃	G₁₂	G₁₃	G₂₃
Koto	0.59	1.12	0.67	1.17	0.33	0.39	0.23	0.71	0.89	0.23
Ayous	0.224	6.27	0.13	0.29	0.39	0.23	0.36	0.20	0.31	0.03
Fiber in S0	1.69	107	107	20	0.33	0.33	0.33	25	25	5
Fiber in S1	1.58	92	92	14	0.31	0.31	0.28	23	23	4
Fiber in S2	1.55	85	107	12	0.30	0.30	0.25	18	18	3
Fiber in S3	1.67	97	97	18	0.23	0.23	0.21	21	21	4

下载: 导出CSV

表 3 不同底板的一阶和二阶频率

Table 3. First and second order frequency of various blades

No.	Sample	First-order frequency/Hz		Second-order frequency/Hz
No.	Sample	Calculation	Experiment	Calculation	Experiment
1	S0	129.1	127.3	195.2	187.0
2	S1	123.0	121.7	188.0	179.8
3	S2	118.3	115.5	185.3	179.1
4	S3	125.4	123.3	205.6	198.0
5	VISCARIA	—	123.8	—	183.3
6	Lin Gaoyuan ALC	—	122.1	—	179.7
7	Offensive Wood NCT	—	104.8	—	182.0
8	Cyber Shape Carbon	—	112.8	—	179.5

下载: 导出CSV
