自研高性能胶胶粘CFRP-钢界面性能的温度影响机制

李传习; 高有为; 王孝耀; 李游; 司睹英胡

doi:10.13801/j.cnki.fhclxb.20230614.006

自研高性能胶胶粘CFRP-钢界面性能的温度影响机制

doi: 10.13801/j.cnki.fhclxb.20230614.006

李传习^{1, 2},
高有为^1, ,,
王孝耀¹,
李游³,
司睹英胡¹

1.
长沙理工大学　土木工程学院，长沙 410114
2.
广西大学　土木建筑工程学院，南宁 530005
3.
湖南工业大学　土木工程学院，株洲 412007

基金项目: 国家自然科学基金(51778069)；湖南省自然科学基金(2021JJ40173)；湖南省研究生科研创新重点项目(QL20210180)

详细信息

通讯作者:
高有为，博士，研究方向为钢结构加固、新材料、新技术、新结构　E-mail：gaoyouwei95@163.com

中图分类号: TB332
计量
- 文章访问数: 509
- HTML全文浏览量: 197
- PDF下载量: 25
- 被引次数: 0
出版历程
- 收稿日期: 2023-04-07
- 修回日期: 2023-05-24
- 录用日期: 2023-06-03
- 网络出版日期: 2023-06-15
- 刊出日期: 2024-02-01

Effect mechanism of temperature on the interface properties of CFRP-steel bondedby self-developed adhesive

LI Chuanxi^{1, 2},
GAO Youwei^{1
, ,},
WANG Xiaoyao¹,
LI You³,
SIDU Yinghu¹

1.
School of Civil Engineering, Changsha University of Science and Technology, Changsha 410114, China
2.
School of Civil Engineering and Architecture, Guangxi University, Nanning 530005, China
3.
College of Civil Engineering, Hunan University of Technology, Zhuzhou 412007, China

Funds: National Natural Science Foundation of China (51778069); Natural Science Foundation of Hunan Province (2021JJ40173); Key Research and Innovation Project for Graduate Students of Hunan Province (QL20210180)

摘要

摘要: 粘结界面是碳纤维增强复合材料(CFRP)加固钢结构的薄弱环节，受胶粘剂和温度影响显著。为深入了解自研高性能胶胶粘CFRP-钢界面性能的温度影响机制，制作了28个CFRP-钢双搭接试件，开展了自研高性能胶粘剂G3和典型商品胶粘剂Sika30分别在7种环境温度下(−20℃、−5℃、10℃、25℃、40℃、55℃和70℃)的拉伸剪切试验。分析了试件的破坏模式、极限承载力、荷载-位移曲线、界面剪应力及粘结-滑移曲线等。结果表明：随温度升高，胶粘剂强度降低，韧性增加；当温度接近或超过胶粘剂玻璃转化温度，胶体性能急剧下降，搭接试件的破坏模式由CFRP层离破坏变为钢-胶界面破坏，界面性能显著降低；G3试件的低温性能与Sika30试件相当，但G3胶粘剂试件的高温性能显著优于Sika30胶粘剂试件；试件在低温环境下的界面性能较25℃显著降低，胶粘CFRP加固钢结构需考虑低温下加固系统脆化产生的不利影响。
- 桥梁加固 /
- 界面性能 /
- 高性能胶粘剂 /
- 环境温度 /
- 粘结-滑移关系
Abstract: Bonding interface is the weak link of carbon fiber reinforced polymer (CFRP) reinforced steel structure, which is significantly affected by adhesive and temperature. In order to investigate the effect of temperature on the interfacial properties of CFRP-steel bonded by a self-developed high-performance adhesive, 28 CFRP-steel double lap specimens were prepared. The tensile shear tests of self-developed high-performance adhesive G3 and typical commercial adhesive Sika30 were carried out at 7 ambient temperatures (−20℃, −5℃, 10℃, 25℃, 40℃, 55℃ and 70℃). The failure mode, ultimate bearing capacity, load-displacement curve, interface shear stress and bond-slip curve of the specimens were analyzed. The results show that the strength of the adhesive decreases and the toughness increases with the increase of temperature. When the temperature is close to or exceeds the glass transition temperature of the adhesive, the colloidal performance decreases sharply, and the failure mode of the lap joint specimen changes from CFRP layer separation failure to steel-adhesive interface failure, and the interface performance decreases significantly. The low temperature performance of G3 specimen is comparable to that of Sika30 specimen, but the high temperature performance of G3 adhesive specimen is significantly better than that of Sika30 adhesive specimen. The interface performance of the specimen at low temperature is significantly lower than that at 25℃. The adverse effects of brittleness of the reinforcement system at low temperature should be considered in the steel structure strengthened with adhesive CFRP.
- bridge reinforcement /
- interface performance /
- high performance adhesive /
- ambient temperature /
- bond-slip relationship

HTML全文

图 1 胶粘剂试件尺寸

R—Radius of arc segment; b—Breadth; L₀—Test segment spacing; L₁—Length; L—Total length of specimen; h—Thickness

Figure 1. Size of adhesive specimen

下载: 全尺寸图片幻灯片

图 2 几何尺寸及应变片布置

Figure 2. Geometric dimensions and strain gauge arrangement

下载: 全尺寸图片幻灯片

图 3 胶粘剂试验

Figure 3. Adhesive test

下载: 全尺寸图片幻灯片

图 4 双搭接试件试验

Figure 4. Double lap test

下载: 全尺寸图片幻灯片

图 5 不同工作温度下胶粘剂的拉伸应力-应变曲线

Figure 5. Tensile stress-strain curves of adhesives at different working temperatures

下载: 全尺寸图片幻灯片

图 6 不同工作温度下胶粘剂的剪切荷载-位移曲线

Figure 6. Shear load-displacement curves of adhesives at different operating temperatures

下载: 全尺寸图片幻灯片

图 7 CFRP-钢双搭接试件的界面破坏形态

Figure 7. Interface failure mode of the CFRP-steel double lap specimens

下载: 全尺寸图片幻灯片

图 8 CFRP-钢双搭接试件最大位移(a)与极限荷载(b)随温度升高的变化趋势

Figure 8. Variation trend of maximum displacement (a) and ultimate load (b) of CFRP-steel double lap specimens with increasing temperature

下载: 全尺寸图片幻灯片

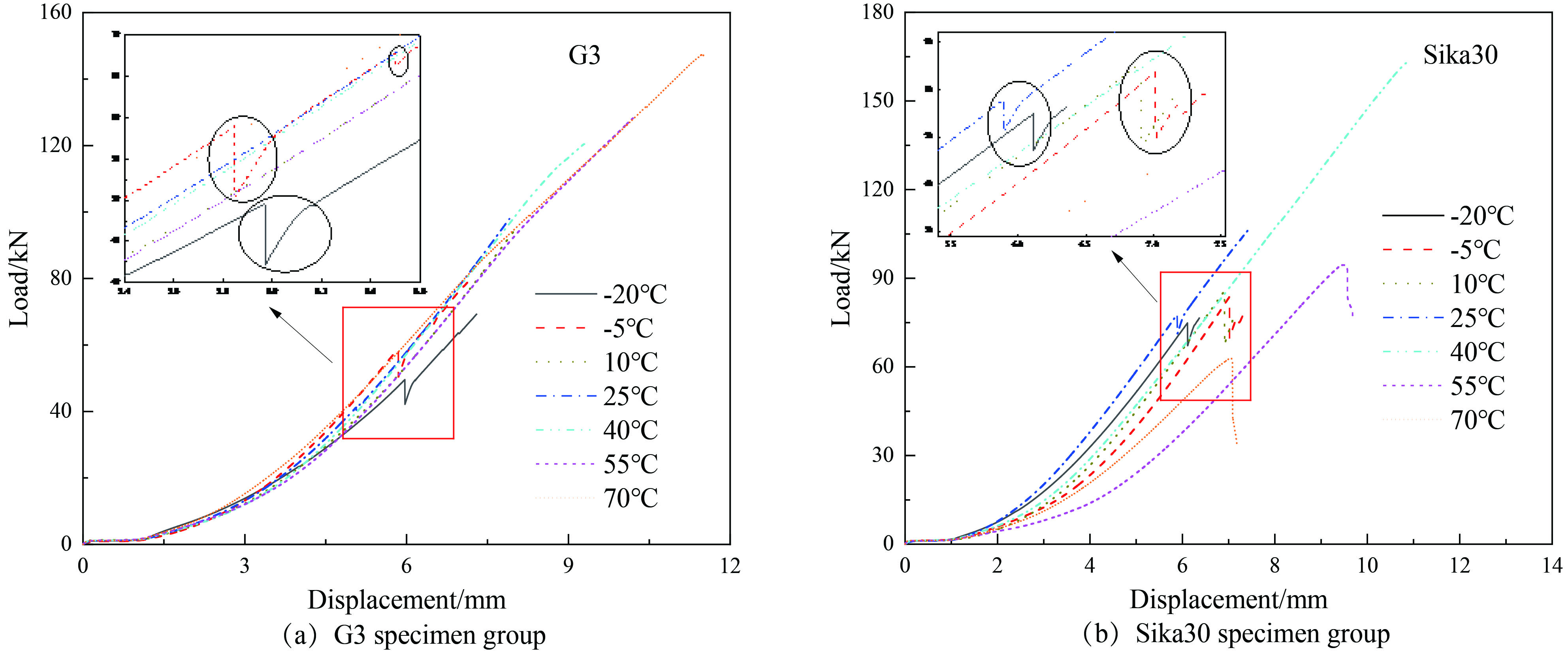

图 9 CFRP-钢双搭接试件荷载-位移曲线

Figure 9. Load-displacement curves of CFRP-steel double lap specimens

下载: 全尺寸图片幻灯片

图 10 CFRP表面轴向应变分布

P_u—Ultimate load

Figure 10. Axial strain distribution on CFRP surface

下载: 全尺寸图片幻灯片

图 11 CFRP-钢双搭接试件剪应力分布

Figure 11. Shear stress distribution of CFRP-steel double lap specimens

下载: 全尺寸图片幻灯片

图 12 CFRP-钢双搭接试件粘结-滑移关系

Figure 12. Bond-slip relationship of CFRP-steel double lap specimens

下载: 全尺寸图片幻灯片

表 1 材料参数

Table 1. Material parameters

Material	Tensile strength/ MPa	Elasticity modulus/ GPa	Elongation at break/ %	Glass conversion temperature T_g/℃
G3	64.4	2.7	9.73	95
Sika30	30.3	11.4	1.62	62
CFRP	2657.0	180.0	1.70	—
Q345 D	514.0	206.0	—	—
Notes: CFRP—Carbon fiber reinforced polymer; G3, Sika30—Adhesive type.

下载: 导出CSV

表 2 CFRP-钢双搭接试件的拉伸剪切试验结果

Table 2. Tensile shear test results of CFRP-steel double lap specimens

Specimen	Measuring temperature /℃	Maximum displacement/mm		Ultimate load/kN		Failure mode
Specimen	Measuring temperature /℃	Test value	Mean value	Test value	Mean value	Failure mode
G3	−20	8.0/7.3	7.7	68.5/69.3	68.9	d
	−5	7.1/7.5	7.3	78.9/78.7	78.8	a+d
	10	8.0/7.1	7.6	94.6/95.5	95.1	a
	25	7.9/8.0	8.0	97.9/98.4	98.2	a
	40	8.2/9.3	8.8	119.1/120.4	119.8	a
	55	8.3/10.2	9.3	128.3/128.2	128.3	a
	70	9.6/11.5	10.6	144.9/147.4	146.2	a
Sika30	−20	6.4/5.9	6.1	76.5/72.5	74.5	a
	−5	7.8/7.4	7.6	83.6/83.7	83.7	a
	10	7.0/7.2	7.1	88.5/85.7	87.1	a
	25	7.4/7.0	7.2	106.3/102.1	104.2	a
	40	11.2/10.9	11.1	160.2/162.9	161.6	a
	55	9.7/9.7	9.7	81.6/76.1	78.9	d
	70	7.6/7.2	7.4	65.5/62.9	64.2	d
Notes: Failure mode: a—CFRP material damage; d—Failure of steel-adhesive interface.

下载: 导出CSV

表 3 CFRP-钢双搭接试件本构参数

Table 3. Constitutive parameters of CFRP-steel double lap specimens

Specimen	T/℃	P₁/kN	τ_max/ MPa	S₁/ mm	S₂/ mm	S_f/ mm	K/ (MPa·mm^–1)	G_f/ (MPa·mm)
G3	−20	68.5 (P_u)	34.7	0.17	—	0.17	204.2	2.9
	−5	78.7 (P_u)	36.6	0.17	—	0.17	215.1	3.1
	10	95.5 (P_u)	38.1	0.17	—	0.17	223.9	3.2
	25	97.9 (P_u)	38.1	0.18	—	0.18	211.8	3.4
	40	105.0 (0.88P_u)	33.3	0.17	0.22	0.22	200.5	4.5
	55	97.9 (0.73P_u)	32.8	0.17	0.25	0.33	198.4	6.7
	70	114.1 (0.79P_u)	32.6	0.18	0.27	0.39	184.7	7.8
Sika30	−20	65.2 (0.9P_u)	21.0	0.10	—	0.23	208.5	2.4
	−5	60.0 (0.72P_u)	24.3	0.08	—	0.21	289.6	2.6
	10	68.2 (0.77P_u)	31.2	0.10	—	0.17	316.9	2.7
	25	65.1 (0.61P_u)	35.4	0.10	—	0.29	343.8	5.1
	40	85.7 (0.72P_u)	23.9	0.24	—	0.48	169.0	5.7
	55	43.7 (0.54P_u)	9.7	0.16	0.22	0.35	59.0	2.0
	70	46.6 (0.74P_u)	8.6	0.19	0.22	0.29	46.1	1.4
Notes: T—Test temperature; P₁—Load corresponding to the peak shear stress; τ_max—Peak shear stress; S₁—Slip amount corresponding to the peak shear stress; S₂—Corresponding slip when the shear stress begins to decrease; S_f—Limit slip; K—Interface stiffness; G_f—Interfacial fracture energy.

下载: 导出CSV
