不同加载速率下CFRP约束再生骨料混凝土重复轴压应力-应变关系

李鹏达, 冼旭俊, 任昱浩, 周英武

李鹏达, 冼旭俊, 任昱浩, 等. 不同加载速率下CFRP约束再生骨料混凝土重复轴压应力-应变关系[J]. 复合材料学报, 2024, 41(3): 1487-1504. DOI: 10.13801/j.cnki.fhclxb.20230831.004
引用本文: 李鹏达, 冼旭俊, 任昱浩, 等. 不同加载速率下CFRP约束再生骨料混凝土重复轴压应力-应变关系[J]. 复合材料学报, 2024, 41(3): 1487-1504. DOI: 10.13801/j.cnki.fhclxb.20230831.004
LI Pengda, XIAN Xujun, REN Yuhao, et al. Cyclic stress-strain relationship of CFRP-confined recycled aggregates concrete under different loading rates[J]. Acta Materiae Compositae Sinica, 2024, 41(3): 1487-1504. DOI: 10.13801/j.cnki.fhclxb.20230831.004
Citation: LI Pengda, XIAN Xujun, REN Yuhao, et al. Cyclic stress-strain relationship of CFRP-confined recycled aggregates concrete under different loading rates[J]. Acta Materiae Compositae Sinica, 2024, 41(3): 1487-1504. DOI: 10.13801/j.cnki.fhclxb.20230831.004

不同加载速率下CFRP约束再生骨料混凝土重复轴压应力-应变关系

基金项目: 国家自然科学基金(U2001226;52078299);深圳市科技计划(JCYJ20210324095003010;KQTD20200820113004005)
详细信息
    通讯作者:

    周英武,博士,教授,研究方向为新材料/复材结构 E-mail: ywzhou@szu.edu.cn

  • 中图分类号: TU528;TB332

Cyclic stress-strain relationship of CFRP-confined recycled aggregates concrete under different loading rates

Funds: National Natural Science Foundation of China (U2001226; 52078299); Shenzhen Science and Technology Program (JCYJ20210324095003010; KQTD20200820113004005)
  • 摘要: 为研究碳纤维增强树脂复合材料(CFRP)约束再生骨料混凝土(RAC)在重复轴向压缩作用下的力学性能,对72根CFRP约束RAC圆柱进行了不同加载速率下的单调及重复轴压试验,分析了加载速率、再生骨料(RA)替代率和CFRP层数对CFRP约束RAC的破坏模式、极限状态、重复应力-应变关系的影响。试验结果表明:CFRP约束对100wt%RA替代率混凝土极限状态的增强效果最为显著,但其增强效果随着加载速率的增大而减小。相比于3 mm/min的加载速率,2层CFRP约束100wt%RA替代率混凝土在18 mm/min的加载速率下,其极限强度增强比降低了16.2%,极限应变增强比降低了22.6%。此外,重复轴压荷载作用下,卸载刚度和再加载刚度均与RA替代率和加载速率呈负相关,但加载速率的提升会削弱RA替代率的影响。最后,通过对试验数据的回归分析,建立了考虑加载速率与RA替代率耦合作用的CFRP约束RAC重复轴压应力-应变模型,模型预测曲线与本文的试验曲线和现有文献收集的试验曲线匹配良好。



    Abstract: This study experimentally investigated the mechanical behavior of carbon fiber reinforced polymer (CFRP) confined recycled aggregate concrete (RAC) under cyclic loading. In total, 72 CFRP-confined circular RAC specimens were tested under monotonic and cyclic axial compression, with a focus on the various loading rates and recycled aggregate (RA) replacement ratios. Test results indicate that the reinforcing effect of CFRP confinement on the ultimate condition of the concrete with 100wt%RA replacement ratio is most pronounced. However, this enhancement diminishes as the loading rate increases. In comparison to a loading rate of 3 mm/min, for two layers of CFRP-confined concrete with 100wt%RA replacement ratio, the enhancement ratio in ultimate strength is reduced by 16.2%, and the enhancement ratio in ultimate strain is reduced by 22.6% at a loading rate of 18 mm/min. Furthermore, under cyclic axial compression loading, both the unloading stiffness and reloading stiffness exhibit a negative correlation with the RA replacement ratio and loading rate. Nevertheless, the loading rate increase weakens the RA ratio's influence. Based on a regression analysis of the experimental data, a new cyclic stress-strain model for CFRP-confined recycled aggregate concrete incorporating the coupled effects of loading rate and RA replacement ratio is proposed. The proposed model exhibits excellent agreement with the experimental curves in this paper and the collected stress-strain curves from the opening literature.



  • 图  1   轴压试验的加载装置及测量装置

    LVDTs—Linear variable displacement transducer; DIC—Digital image correlation; LSG—Lateral strain gauge; VSG—Vertical strain gauge

    Figure  1.   Loading and measuring devices for axial compression tests

    图  2   CFRP约束RAC试件的破坏形态

    Figure  2.   Failure modes of CFRP-confined RAC specimens

    图  3   0.3 mm/min加载速率下CFRP约束再生骨料混凝土应力-应变曲线

    Figure  3.   Stress-strain curves for CFRP-confined recycled aggregate concrete at 0.3 mm/min loading rate

    图  4   6 mm/min加载速率下CFRP约束再生骨料混凝土应力-应变曲线

    Figure  4.   Stress-strain curves for CFRP-confined recycled aggregate concrete at 6 mm/min loading rate

    图  5   18 mm/min加载速率下CFRP约束再生骨料混凝土应力-应变曲线

    Figure  5.   Stress-strain curves for CFRP-confined recycled aggregate concrete at 18 mm/min loading rate

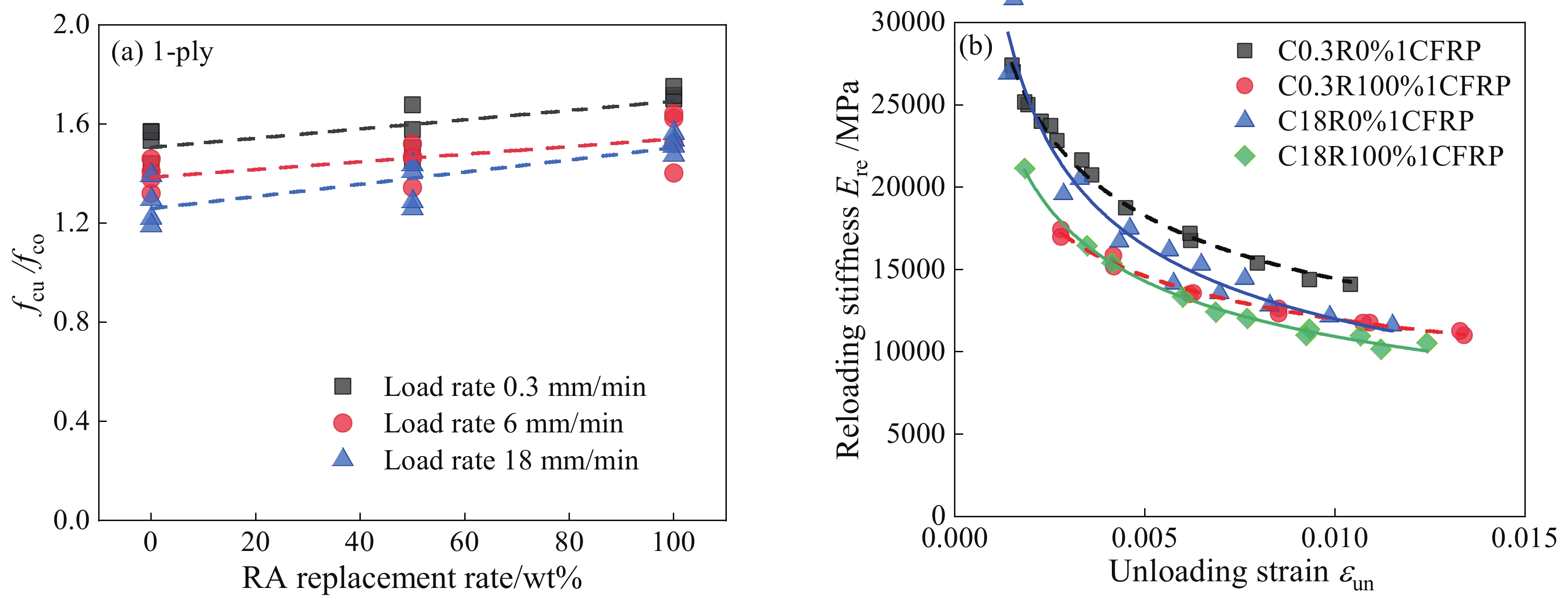

    图  6   加载速率与RA替代率对CFRP约束RAC极限强度增强比的影响

    Figure  6.   Effect of loading rate and RA replacement rate on ultimate strength enhancement ratio of CFRP-confined RAC

    图  7   CFRP约束混凝土的极限强度模型评估

    Figure  7.   Evaluation of ultimate strength model of CFRP-confined concrete

    图  8   加载速率与RA替代率对CFRP约束RAC极限应变增强比的影响

    Figure  8.   Effect of loading rate and RA replacement rate on ultimate strain enhancement ratio of CFRP-confined RAC

    图  9   CFRP约束混凝土的极限应变模型评估

    Figure  9.   Evaluation of ultimate strain model of CFRP-confined concrete

    图  10   CFRP约束混凝土重复轴压下的典型应力-应变曲线

    E2—The second stiffness; fun—Unloading stress; εun—Unloading strain; εp1—Plastic strain; Eun, 0—Unloading stiffness; Ere—Reloading stiffness; fr—Elastic limit stress; fre—Reloading stress; εre—Reloading strain; fret, env—Return envelope stress; εret, env—Return envelope strain; n—Curvature of transition zone

    Figure  10.   Typical stress-strain curve of CFRP-confined concrete under cyclic compression

    图  11   RA替代率、加载速率和约束刚度对CFRP约束RAC卸载刚度Eun,0的影响

    Figure  11.   Effect of RA replacement ratios, loading rate and confinement stiffness on unloading stiffness Eun,0 of CFRP-confined RAC

    图  12   CFRP约束RAC卸载刚度Eun,0的模型性能对比

    ω—Absolute error

    Figure  12.   Comparison of model performance of unloading stiffness Eun,0 CFRP-confined RAC

    图  13   RA替代率、加载速率和约束刚度对CFRP约束RAC残余塑性应变εpl的影响

    Figure  13.   Effect of RA replacement ratios, loading rate and confinement stiffness on residual plastic strain εpl of CFRP-confined RAC

    图  14   CFRP约束RAC残余塑性应变εpl的模型性能对比

    Figure  14.   Comparison of model performance of residual plastic strain εpl of CFRP-confined RAC

    图  15   RA替代率、加载速率和约束刚度对CFRP约束RAC再加载刚度Ere的影响

    Figure  15.   Effect of RA replacement ratios, loading rate and confinement stiffness on CFRP-confined RAC reloading stiffness Ere

    图  16   CFRP约束RAC再加载刚度Ere的模型性能对比

    Figure  16.   Comparison of model performance of reloading stiffness Ere of CFRP-confined RAC

    图  17   RA替代率、加载速率和约束刚度对CFRP约束RAC过渡区应力fr的影响

    Figure  17.   Effect of RA replacement ratios, loading rate and confinement stiffness on CFRP-confined RAC transition zone stress fr

    图  18   CFRP约束RAC过渡区应力fr的模型性能对比

    Figure  18.   Model performance comparison of CFRP-confined RAC transition zone stress fr

    图  19   加载速率对CFRP约束RAC曲率n的影响

    Figure  19.   Effect of loading rate on n of CFRP-confined RAC

    图  20   CFRP约束RAC曲率n的模型性能对比

    Figure  20.   Comparison of model performance of curvature n of CFRP-confined RAC

    图  21   CFRP约束RAC重复轴压应力-应变模型的整体性能

    R—Substitution rate

    Figure  21.   Overall performance of CFRP-confined RAC cyclic axial compression stress-strain model

    表  1   碳纤维增强树脂复合材料(CFRP)约束再生骨料混凝土(RAC)试件设计参数

    Table  1   Design parameters for carbon fiber reinforced polymer (CFRP)-confined recycled aggregate concrete (RAC) specimens

    SpecimenLoading typeCFRP layerLoading rate/
    (mm·min−1)
    RA replacement rate/wt%fco/MPaεco/%
    M0.3R0%1CFRP Monotonic loading 1 0.3 0 46.3 0.244
    M0.3R50%1CFRP 50 43.2 0.240
    M0.3R100%1CFRP 100 36.6 0.230
    M6R0%1CFRP 6 0 50.4 0.249
    M6R50%1CFRP 50 47.3 0.245
    M6R100%1CFRP 100 38.2 0.233
    M18R0%1CFRP 18 0 52.1 0.252
    M18R50%1CFRP 50 50.2 0.249
    M18R100%1CFRP 100 41.0 0.237
    M0.3R0%2CFRP 2 0.3 0 39.7 0.234
    M0.3R50%2CFRP 50 38.6 0.233
    M0.3R100%2CFRP 100 34.5 0.226
    M6R0%2CFRP 6 0 42.9 0.239
    M6R50%2CFRP 50 41.6 0.237
    M6R100%2CFRP 100 40.8 0.236
    M18R0%2CFRP 18 0 43.3 0.240
    M18R50%2CFRP 50 42.5 0.239
    M18R100%2CFRP 100 41.4 0.237
    C0.3R0%1CFRP Cyclic loading 1 0.3 0 46.3 0.244
    C0.3R50%1CFRP 50 43.2 0.240
    C0.3R100%1CFRP 100 36.6 0.230
    C6R0%1CFRP 6 0 50.4 0.249
    C6R50%1CFRP 50 47.3 0.245
    C6R100%1CFRP 100 38.2 0.233
    C18R0%1CFRP 18 0 52.1 0.252
    C18R50%1CFRP 50 50.2 0.249
    C18R100%1CFRP 100 41.0 0.237
    C0.3R0%2CFRP 2 0.3 0 39.7 0.234
    C0.3R50%2CFRP 50 38.6 0.233
    C0.3R100%2CFRP 100 34.5 0.226
    C6R0%2CFRP 6 0 42.9 0.239
    C6R50%2CFRP 50 41.6 0.237
    C6R100%2CFRP 100 40.8 0.236
    C18R0%2CFRP 18 0 43.3 0.240
    C18R50%2CFRP 50 42.5 0.239
    C18R100%2CFRP 100 41.4 0.237
    Notes: M—Monotonic loading; C—Cyclic loading; The number after "M" or "C"—Loading rate; R—Recycled aggregate replacement rate; CFRP—Carbon fiber reinforced polymer; For example, C18R100%2CFRP—Two-layer CFRP-confined 100wt% recycled aggregate concrete columns with a cyclic loading rate of 18 mm/min; fco—Compressive strength of unconfined RAC specimens; εco—Peak strain of unconfined RAC specimens; RA—Recycled aggregate.
    下载: 导出CSV

    表  2   RAC的配合比

    Table  2   Mix ratio of RAC

    RA replacement rate/wt% Water/
    (kg·m−3)
    Cement/
    (kg·m−3)
    NA/
    (kg·m−3)
    RA/
    (kg·m−3)
    Sand/
    (kg·m−3)
    0 201 380 1128 0 691
    50 201 380 564 564 691
    100 201 380 0 1128 691
    Note: NA—Natural aggregate.
    下载: 导出CSV

    表  3   CFRP的力学性能

    Table  3   Mechanical properties of CFRP

    Materialtf/mmEf/GPaff/MPaεf/%
    CFRP0.167248.73820.51.54
    Notes: tf—Thickness of CFRP; Ef—Modulus of elasticity of CFRP; ff—Ultimate tensile stress of CFRP; εf—Ultimate tensile strain of CFRP.
    下载: 导出CSV

    表  4   CFRP约束RAC试件试验结果

    Table  4   Test results for CFRP-confined RAC specimens

    Specimenfcu/
    MPa
    fcu/fcoεcu/%εcu/εcoεh,rup/%Specimenfcu/
    MPa
    fcu/fcoεcu/%εcu/εcoεh,rup/%
    M0.3R0%1CFRP-1 72.7 1.58 1.37 5.61 1.47 C0.3R0%1CFRP-1 66.7 1.44 1.23 5.03 1.42
    M0.3R0%1CFRP-2 71.0 1.54 1.41 5.79 1.43 C0.3R0%1CFRP-2 72.6 1.57 1.51 6.18 1.50
    M0.3R50%1CFRP-1 62.7 1.46 1.19 4.96 1.38 C0.3R50%1CFRP-1 72.5 1.68 1.50 6.23 1.61
    M0.3R50%1CFRP-2 64.9 1.51 1.17 4.87 1.40 C0.3R50%1CFRP-2 68.2 1.58 1.32 5.50 1.28
    M0.3R100%1CFRP-1 C0.3R100%1CFRP-1 62.8 1.72 1.65 7.14 1.17
    M0.3R100%1CFRP-2 62.3 1.73 1.61 7.04 1.36 C0.3R100%1CFRP-2 64.1 1.75 1.74 7.53 1.31
    M6R0%1CFRP-1 71.0 1.42 1.17 4.71 1.36 C6R0%1CFRP-1 66.6 1.32 1.10 4.42 1.23
    M6R0%1CFRP-2 73.6 1.47 1.22 4.89 0.99 C6R0%1CFRP-2 69.6 1.38 1.11 4.43 1.24
    M6R50%1CFRP-1 69.5 1.48 1.27 5.16 1.14 C6R50%1CFRP-1 69.2 1.46 1.50 6.10 1.44
    M6R50%1CFRP-2 71.9 1.53 1.31 5.34 1.12 C6R50%1CFRP-2 63.6 1.34 1.01 4.11 1.22
    M6R100%1CFRP-1 53.6 1.41 1.06 4.56 1.25 C6R100%1CFRP-1 62.0 1.62 1.69 7.27 1.49
    M6R100%1CFRP-2 58.1 1.53 1.32 5.69 1.27 C6R100%1CFRP-2 62.7 1.64 1.60 6.88 1.23
    M18R0%1CFRP-1 63.6 1.22 1.00 3.96 1.09 C18R0%1CFRP-1 67.6 1.30 1.14 4.52 1.22
    M18R0%1CFRP-2 72.6 1.40 1.13 4.49 1.47 C18R0%1CFRP-2 62.1 1.19 1.31 5.19 1.15
    M18R50%1CFRP-1 70.8 1.42 1.17 4.71 0.99 C18R50%1CFRP-1 63.1 1.26 1.14 4.58 1.12
    M18R50%1CFRP-2 72.1 1.44 1.19 4.78 1.42 C18R50%1CFRP-2 64.6 1.29 1.25 5.01 1.23
    M18R100%1CFRP-1 64.1 1.56 1.28 5.39 1.35 C18R100%1CFRP-1 62.0 1.51 1.38 5.83 1.19
    M18R100%1CFRP-2 62.9 1.54 1.28 5.39 1.28 C18R100%1CFRP-2 60.5 1.48 1.33 5.60 1.13
    M0.3R0%2CFRP-1 93.7 2.40 2.51 10.74 1.41 C0.3R0%2CFRP-1 88.3 2.22 2.50 10.62 1.34
    M0.3R0%2CFRP-2 80.8 2.07 2.09 8.94 1.17 C0.3R0%2CFRP-2
    M0.3R50%2CFRP-1 91.4 2.40 2.63 11.29 1.39 C0.3R50%2CFRP-1 92.0 2.38 2.26 9.68 1.12
    M0.3R50%2CFRP-2 85.2 2.24 2.08 8.95 1.28 C0.3R50%2CFRP-2 94.4 2.45 2.28 9.78 1.36
    M0.3R100%2CFRP-1 80.4 2.36 2.43 10.73 1.31 C0.3R100%2CFRP-1 89.6 2.60 3.09 13.60 1.40
    M0.3R100%2CFRP-2 86.0 2.53 2.50 11.06 1.22 C0.3R100%2CFRP-2 87.6 2.54 3.05 13.42 1.54
    M6R0%2CFRP-1 92.9 2.19 2.15 8.97 1.31 C6R0%2CFRP-1 94.8 2.21 2.15 8.96 1.35
    M6R0%2CFRP-2 85.3 2.01 2.10 8.77 1.29 C6R0%2CFRP-2 92.1 2.15 2.30 9.59 1.38
    M6R50%2CFRP-1 91.2 2.20 2.28 9.60 1.45 C6R50%2CFRP-1 92.6 2.23 2.50 10.50 1.13
    M6R50%2CFRP-2 94.3 2.27 2.07 8.72 1.44 C6R50%2CFRP-2 92.5 2.22 1.91 8.03 1.13
    M6R100%2CFRP-1 87.8 2.17 1.87 7.93 1.36 C6R100%2CFRP-1 90.1 2.21 2.63 11.11 1.25
    M6R100%2CFRP-2 92.0 2.27 2.27 9.60 1.39 C6R100%2CFRP-2 90.3 2.21 2.41 10.16 1.41
    M18R0%2CFRP-1 C18R0%2CFRP-1 84.8 1.96 2.08 8.64 1.21
    M18R0%2CFRP-2 91.5 2.13 2.44 10.16 1.36 C18R0%2CFRP-2 87.2 2.01 2.31 9.59 1.26
    M18R50%2CFRP-1 87.4 2.08 2.09 8.74 1.13 C18R50%2CFRP-1 93.9 2.21 2.51 10.51 1.25
    M18R50%2CFRP-2 95.1 2.26 2.31 9.67 1.22 C18R50%2CFRP-2 90.7 2.13 2.25 9.42 1.25
    M18R100%2CFRP-1 84.2 2.05 2.00 8.43 1.23 C18R100%2CFRP-1 81.5 1.97 2.11 8.89 0.99
    M18R100%2CFRP-2 C18R100%2CFRP-2 89.8 2.17 2.49 10.47 1.22
    Notes: fcu—Ultimate strength of specimens; fcu/fco—Ultimate strength enhancement ratio of the specimens; εcu—Ultimate strain of specimens; εcu/εco—Ultimate strain enhancement ratio of the specimens; εh,rup—Hoop rupture strain of specimens; "—"—Data not measured; Two specimens with the same parameters were prepared, and they were distinguished by "-1" and "-2".
    下载: 导出CSV

    表  5   CFRP约束混凝土极限强度模型

    Table  5   Ultimate strength model of CFRP-confined concrete

    ReferencesUltimate strength modelω
    [27]fdccfcc,0=1+0.1(lg(˙εε0))(f30fco)0.730.1203
    [33, 35]fdccfcc,0=1+(0.06ln(flfco)+0.274)lg(˙εε0)0.3077
    [34]fdccfcc,0=1+(0.204+0.056ln(flfco))lg(˙εε0)0.2083
    Notes: fl—Confinement stress of CFRP; fcc,0—Ultimate strength of CFRP-confined recycled aggregate concrete columns in quasi-static conditions; fdcc—Ultimate strength of CFRP-confined recycled aggregate concrete columns in a non-quasistatic conditions; ˙ε—Dynamic strain rate; ε0—Quasi-static strain rate, taking a value of 1.67×10–5 s–1; f30—Compressive strength of C30 concrete, taken as 30 MPa.
    下载: 导出CSV

    表  6   CFRP约束混凝土的极限应变模型

    Table  6   Ultimate strain model of CFRP-confined concrete

    ReferencesUltimate strain modelω
    [27]εdccεcc,0=10.1lg(˙εε0)0.0940
    [33, 35]εdccεcc,0=1.822+0.165lg(˙εε0)1.3436
    [34]εdccεcc,0=1+(0.2887flfco+0.0329)lg(˙εε0)0.3481
    Notes: εcc,0—Ultimate strain of CFRP-confined concrete columns in quasi-static conditions; εdcc—Ultimate strain of CFRP-confined concrete columns in a non-quasi-static conditions.
    下载: 导出CSV
