稻秸增强酚醛泡沫保温材料的制备与性能

郝硕; 谢浩; 李爽; 王伟宏

doi:10.13801/j.cnki.fhclxb.20230110.001

稻秸增强酚醛泡沫保温材料的制备与性能

doi: 10.13801/j.cnki.fhclxb.20230110.001

东北林业大学　生物质材料科学与技术教育部重点实验室，哈尔滨 150040

基金项目: 国家自然科学基金(32071704)

详细信息

通讯作者:
王伟宏，博士，教授，博士生导师，研究方向为生物质复合材料　E-mail: weihongwang2001@nefu.edu.cn

中图分类号: S784；TB332
计量
- 文章访问数: 642
- HTML全文浏览量: 233
- PDF下载量: 37
- 被引次数: 0
出版历程
- 收稿日期: 2022-11-09
- 修回日期: 2022-12-08
- 录用日期: 2022-12-09
- 网络出版日期: 2023-01-10
- 刊出日期: 2023-10-15

Study on the preparation and properties of rice straw reinforced phenolic foam insulation material

Key Lab of Bio-based Material Science & Technology of Education Ministry, Northeast Forestry University, Harbin 150040, China

Funds: National Natural Science Foundation of China (32071704)

摘要

摘要: 将水稻秸秆与酚醛树脂(PF)泡沫复合，改进PF泡沫本身脆性大、力学强度低的问题。探究稻秸长度(8 cm、12 cm和16 cm)、形态(横切秸秆段、斜切秸秆段、搓碾成丝)对复合材料物理性质、力学及燃烧性能的影响。结果表明，稻秸内外表面与PF泡沫基体产生明显机械啮合；稻秸/PF泡沫复合材料的弯曲强度、压缩强度与垂直于板面的抗拉强度均优于PF泡沫；16 cm斜切处理稻秸/PF泡沫复合材料弯曲强度达到1.18 MPa，较PF泡沫提高195.3%；16 cm搓碾处理稻秸/PF泡沫复合材料在应变为10%时的压缩应力和垂直于板面的抗拉强度分别为251.30 kPa与121.26 kPa，较PF分别提高了112.1%和20.7%。垂直燃烧与极限氧指数(LOI)测试结果表明，PF泡沫对稻秸表现出较好的包覆作用，复合材料整体热稳定性与PF泡沫几乎持平，LOI值几乎无变化，稻秸/PF泡沫复合材料和PF泡沫可燃性测试结果均达到B₁级建筑材料要求，具有良好的阻燃性能。8 cm斜切处理稻秸增强PF泡沫复合材料综合力学性能最优。
- 酚醛泡沫 /
- 水稻秸秆 /
- 导热系数 /
- 力学强度 /
- 燃烧性能
Abstract: By compounding rice straw with phenolic resin (PF) foam, to improve the shortcomings of PF foam itself, such as high brittleness and poor mechanical strength, and to investigate the effects of length (8 cm, 12 cm and 16 cm) and form (cross-cutting straw, slope-cutting straw and grinding straw fiber) of rice straw on the physical properties, mechanical and combustion properties of the composite material. The results show that the inner and outer surfaces of rice straw have an obvious mechanical engagement with PF foam. The bending strength, compressive strength and tensile strength perpendicular to the board surface of rice straw/PF foam composites are better than PF foam. The bending strength of 16 cm long slope-cutting rice straw/PF foam composite reaches 1.18 MPa, which is 195% higher than PF foam. The compressive stress at 10% strain and tensile strength perpendicular to the plate surface of 16 cm long grinding rice straw/PF foam composite are 251.30 kPa and 121.26 kPa, respectively, which are 112.1% and 20.7% higher than PF foam. The vertical combustion and limited oxygen index (LOI) results show that PF foam has better wrapping effect on straw, the thermal stability of the composite is almost the same as that of PF foam, with almost no change in LOI value. The flammability test results of both rice straw/PF foam composites and PF foam meet the requirements of B₁ class building materials, which show an excellent fire resistance. To sum up, 8 cm slope-cutting rice straw reinforced PF foam composite has an optimal integrated mechanical property.
- phenolic foam /
- rice straw /
- thermal conductivity /
- mechanical strength /
- combustion properties

HTML全文

图 1 水稻秸秆预处理后的形态

Figure 1. Morphologies of rice straw after pre-processing

下载: 全尺寸图片幻灯片

图 2 稻秸/PF泡沫复合材料的制备过程

Figure 2. Preparation process of rice straw/PF foam composite

下载: 全尺寸图片幻灯片

图 3 复合材料表面 ((a₁) PF泡沫； ((b₁)~(d₁)) 横切、斜切、搓碾稻秸/PF泡沫复合材料)、横截面上的稻秸分布 ((a₂) PF泡沫； ((b₂)~(d₂)) 横切、斜切、搓碾稻秸/PF泡沫复合材料)、PF泡沫对稻秸的渗透情况 (((b₃)~(d₃)) 横切、斜切、搓碾稻秸)及密度 (e)

Figure 3. Appearance ((a₁) PF; ((b₁)-(d₁)) Cross-cutting, slope-cutting, grinding rice straw/PF foam composite), inner distribution of rice straw in cross-section ((a₂) PF; ((b₂)-(d₂)) Cross-cutting, slope-cutting, grinding rice straw/PF foam composite), the filling of PF foam around the rice straw (((b₃)-(d₃)) cross-cutting, slope-cutting rice straw, grinding rice straw) and density (e) of straw/PF foam composites

下载: 全尺寸图片幻灯片

图 4 PF泡沫从稻秸内外表面剥离后，剥离界面的表面形貌：(a) 稻秸外表面；(b) 稻秸内表面；(c) 从秸秆外表面剥离出的PF泡沫；(d) 从秸秆内表面剥离出的PF泡沫

Figure 4. Surface morphologies of the stripping interface after PF foam stripped from the inner and outer surfaces of the rice straw: (a) Outer surface of the rice straw; (b) Inner surface of the rice straw; (c) PF foam stripped from the outer surface of the rice straw; (d) PF foam stripped from the inner surface of the rice straw

下载: 全尺寸图片幻灯片

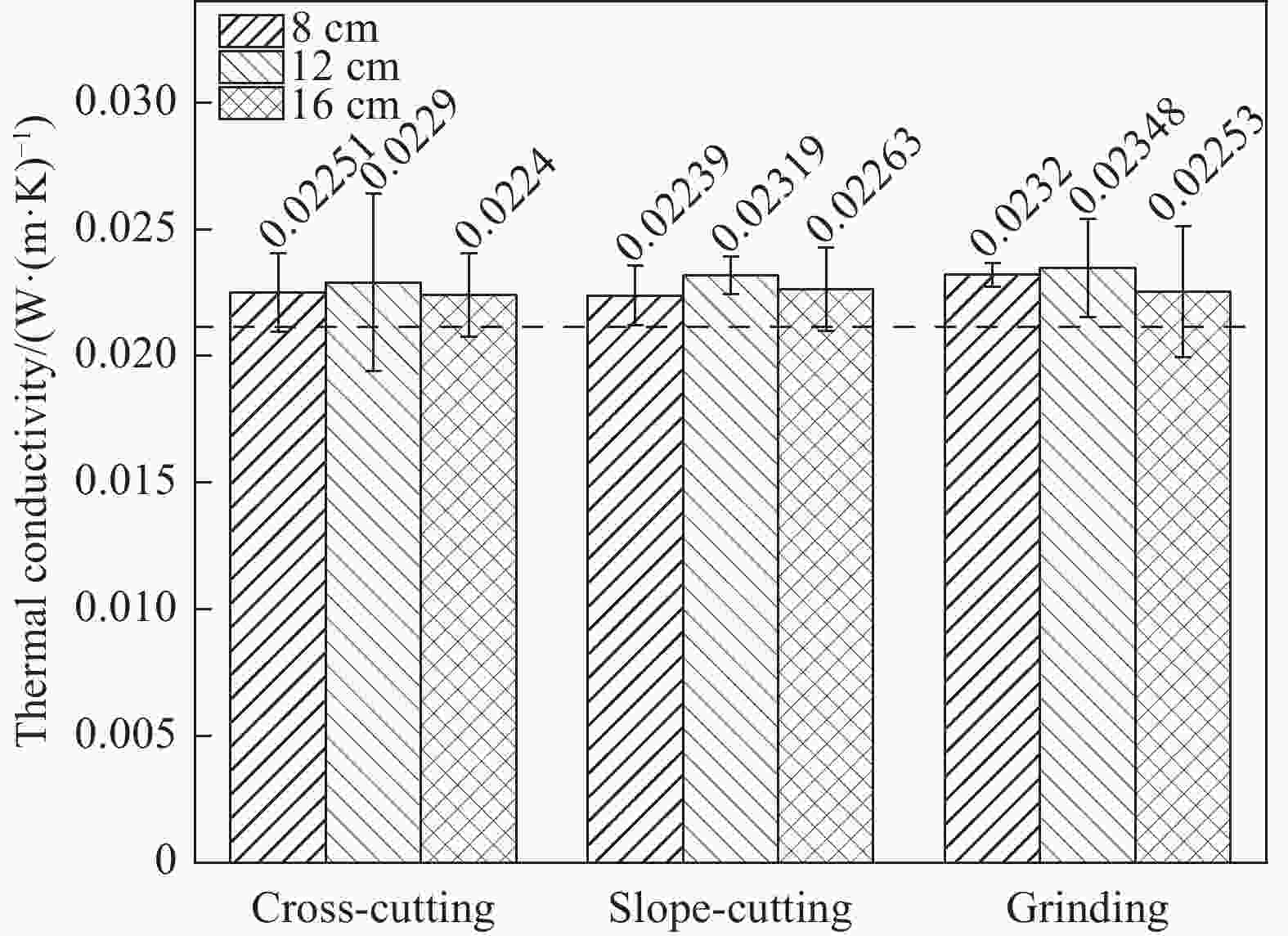

图 5 稻秸/PF泡沫复合材料的导热系数

Figure 5. Thermal conductivity of straw/PF foam composites

下载: 全尺寸图片幻灯片

图 6 稻秸/PF泡沫复合材料的应力-应变及弯曲强度曲线

Figure 6. Stress-strain and flexural strength curves of straw/PF foam composites

下载: 全尺寸图片幻灯片

图 7 相对应变为10%时的压缩应力

Figure 7. Compressive stress of 10% relative deformation

下载: 全尺寸图片幻灯片

图 8 稻秸/PF泡沫复合材料垂直于板面的抗拉强度 (a )与试件破坏形态 ((b) PF泡沫；(c) 横切；(d) 斜切；(e) 搓碾)

Figure 8. Tensile strength perpendicular to the face (a) of straw/PF foam composites and interface after destruction ((b) PF; (c) Cross-cutting; (d) Slope-cutting; (e) Grinding)

下载: 全尺寸图片幻灯片

图 9 PF泡沫和稻秸/PF泡沫复合材料的垂直燃烧情况

Figure 9. Vertical combustion of PF and rice straw/PF foam composites

下载: 全尺寸图片幻灯片

表 1 不同稻秸添加量的稻秸/酚醛树脂(PF)泡沫材料的制备及性能

Table 1. Preparation and properties of rice straw/phenolic resin (PF) foam composite under different amounts of rice straw

	Foaming resin/g	Rice straw/g	Distribution of rice straw in composite	Foaming resin in the mold overflows	Flexural strength/MPa
PF foam	60	0	—	Almost no overflow	0.39
Rice straw/PF foam composite	60	10	Unevenly distributed after foaming	A small amount of foaming resin overflows	0.50
	60	20	Not bad orientation of rice straw	A small amount of foaming resin overflows	0.56
	60	30	Good orientation of rice straw	Some foaming resin overflows	0.70
	60	40	Poor foam filling performance between rice straws	A lot of foaming resin overflows	0.41

下载: 导出CSV

表 2 稻秸/PF泡沫复合材料极限氧指数(LOI)测试结果

Table 2. Results of limited oxygen index (LOI) test on rice straw/PF foam composites

Samples	k₁/%	k₂/%	k₃/%	k₄/%	k₅/%	k₆/%	k'/%
Rice straw	25.7	25.5	25.5	25.4	25.2	25.2	25.4
PF	36.6	36.4	36.6	36.5	36.6	36.5	36.5
8 cm/Cross-cutting/PF	36.1	36.0	35.7	35.6	35.4	35.6	35.7
12 cm/Cross-cutting/PF	35.5	35.7	36.5	36.2	36.6	36.4	36.2
16 cm/Cross-cutting/PF	36.3	35.6	36.1	35.7	35.8	35.9	35.9
8 cm/Slope-cutting/PF	36.2	35.4	35.5	35.0	36.1	35.6	35.6
12 cm/Slope-cutting/PF	35.3	35.1	36.4	35.9	34.7	36.1	35.6
16 cm/Slope-cutting/PF	35.6	35.9	36.3	36.3	36.5	36.4	36.2
8 cm/Grinding/PF	36.4	35.6	35.1	35.3	35.1	36.0	35.6
12 cm/Grinding/PF	36.3	35.3	36.3	35.8	35.5	35.2	35.7
16 cm/Grinding/PF	35.0	36.1	36.0	36.1	36.4	36.3	35.9
Notes: k_i(i=1, 2...6)—Specimen number of the LOI test; k'—Average of the LOI test results.

下载: 导出CSV

表 3 稻秸/PF泡沫复合材料燃烧性能测试结果

Table 3. Results of combustion performance tests on rice straw/PF foam composites

Sample	Virtical burning test (Ignition time: 10 s)				Flammability test (Ignition time: 30 s)
Sample	Flame height/ cm	After flame time/s	After glow time/s	Residual mass fraction/wt%	Flame height/mm	Flaming debris
PF	0	0	5.62	91.3	83	0
8 cm/Cross-cutting/PF	0	0	5.63	95.1	91	0
12 cm/Cross-cutting/PF	0	0	9.29	95.3	105	0
16 cm/Cross-cutting/PF	0	0	8.40	94.4	89	0
8 cm/Slope-cutting/PF	0	0	8.51	95.0	93	0
12 cm/Slope-cutting/PF	0	0	5.56	94.7	97	0
16 cm/Slope-cutting/PF	0	0	6.99	95.3	102	0
8 cm/Grinding/PF	0	0	8.86	95.2	108	0
12 cm/Grinding/PF	0	0	7.89	94.7	99	0
16 cm/Grinding/PF	0	0	6.34	94.9	102	0

下载: 导出CSV
