基于硅橡胶基可加工前驱体的低温烧结CaZnSi<sub>2</sub>O<sub>6</sub>玻璃陶瓷

李鹏虎; 金海云; 刘怀东; 王昭; 高乃奎

基于硅橡胶基可加工前驱体的低温烧结CaZnSi₂O₆玻璃陶瓷

西安交通大学　电力设备电气绝缘国家重点实验室, 西安 710049

基金项目: 国家自然科学基金 (52272073)

详细信息

通讯作者:
金海云，博士，教授，博士生导师，研究方向为电介质与绝缘材料　E-mail: hyjin@mail.xjtu.edu.cn

中图分类号: TQ174;TQ333
计量
- 文章访问数: 183
- HTML全文浏览量: 118
- PDF下载量: 4
- 被引次数: 0
出版历程
- 收稿日期: 2022-09-05
- 修回日期: 2022-10-06
- 录用日期: 2022-10-08
- 网络出版日期: 2022-10-31
- 刊出日期: 2023-08-15

Low-temperature sintering of CaZnSi₂O₆ glass ceramics with machinable precursor based on silicone rubber

State Key Laboratory of Electrical Insulation and Power Equipment, Xi’an Jiaotong University, Xi’an 710049, China

Funds: The National Natural Science Foundation of China (52272073)

摘要

摘要: 陶瓷材料的应用由于其烧结温度高、加工性能差而受到限制。硅橡胶基可陶瓷化复合材料在常温下具有良好的加工性能，而在高温下可以转化为陶瓷材料。因此将硅橡胶基可陶瓷化复合材料作为可加工前驱体，可以解决陶瓷材料的加工问题。然而，以往的研究只是将可陶瓷化复合材料作为一种耐火阻燃材料，导致烧结后陶瓷材料的机械强度较低，弯曲强度一般不超过30 MPa。为了将这种陶瓷材料应用于实际工程中，提高陶瓷材料的机械强度是至关重要的。本研究提出了一种具有可加工前驱体、低烧结温度和高机械强度的CaZnSi₂O₆玻璃陶瓷。为此使用硅橡胶基可陶瓷化复合材料作为低温烧结CaZnSi₂O₆玻璃陶瓷的可加工前驱体，研究了前驱体中硅橡胶比例和低熔点玻璃粉含量对陶瓷材料弯曲强度的影响，并得到了前驱体的基础配方。前驱体具有良好的加工性能，可以剪切成不同尺寸不同形状并完成陶瓷材料的烧结。通过加入适量的Bi₂O₃作为辅助助熔剂，提高了陶瓷的致密度和机械强度，弯曲强度由90.54 MPa提升至110.48 MPa，提高了约22%，同时线性收缩率仅增加了1.88%。Bi元素保留在玻璃相中，没有改变陶瓷的晶相物质。玻璃相中的Bi元素能够通过抑制电导和热离子极化，从而抑制损耗随温度升高而增大的趋势。也就是说Bi元素的加入使得材料在高温下的工频损耗显著降低。此外，Bi₂O₃的加入还使材料的工频击穿场强提高了约25%。1(a)不添加Bi₂O₃与(b)添加Bi₂O₃的陶瓷材料表面显微形貌2温度对陶瓷试样工频介电性能的影响
- 可陶瓷化复合材料 /
- 可加工前驱体 /
- 玻璃陶瓷 /
- 显微形貌 /
- 介电性能
Abstract: The applications of ceramics are limited by their high sintering temperatures and poor processability. The ceramizable silicone rubber composites were prepared using kilchoanite as a ceramic filler, low-melting-point glass frit as a flux, and nano SiO₂ as a reinforcing agent. The CaZnSi₂O₆ glass ceramics were sintered at 1000℃ using the ceramizable composites as machinable precursors. The effect of the mass fraction of silicone rubber and the content of glass frit on the mechanical properties of the ceramics was studied. The effect of Bi₂O₃ as a secondary flux on the microstructure, flexural strength and dielectric properties of the ceramics was investigated. The results showed that the flexural strength of the ceramic samples increased first and then decreased with reducing the mass fraction of silicone rubber or increasing the content of glass frit. The maximum flexural strength of the ceramic samples without Bi₂O₃ sintered at 1000℃ was 90.54 MPa, and the linear contraction was only 15%. A proper content of Bi₂O₃ not only improved the density of microstructure and increased the flexural strength to 110.48 MPa, but also decreased the tanδ of the ceramics at power frequency and high temperature obviously, and improved the breakdown strength of the ceramics at power frequency. The precursors in this study had a good processability and could complete the sintering of ceramics with different sizes and shapes.
- ceramizable composites /
- machinable precursors /
- glass ceramics /
- microstructure /
- dielectric properties

HTML全文

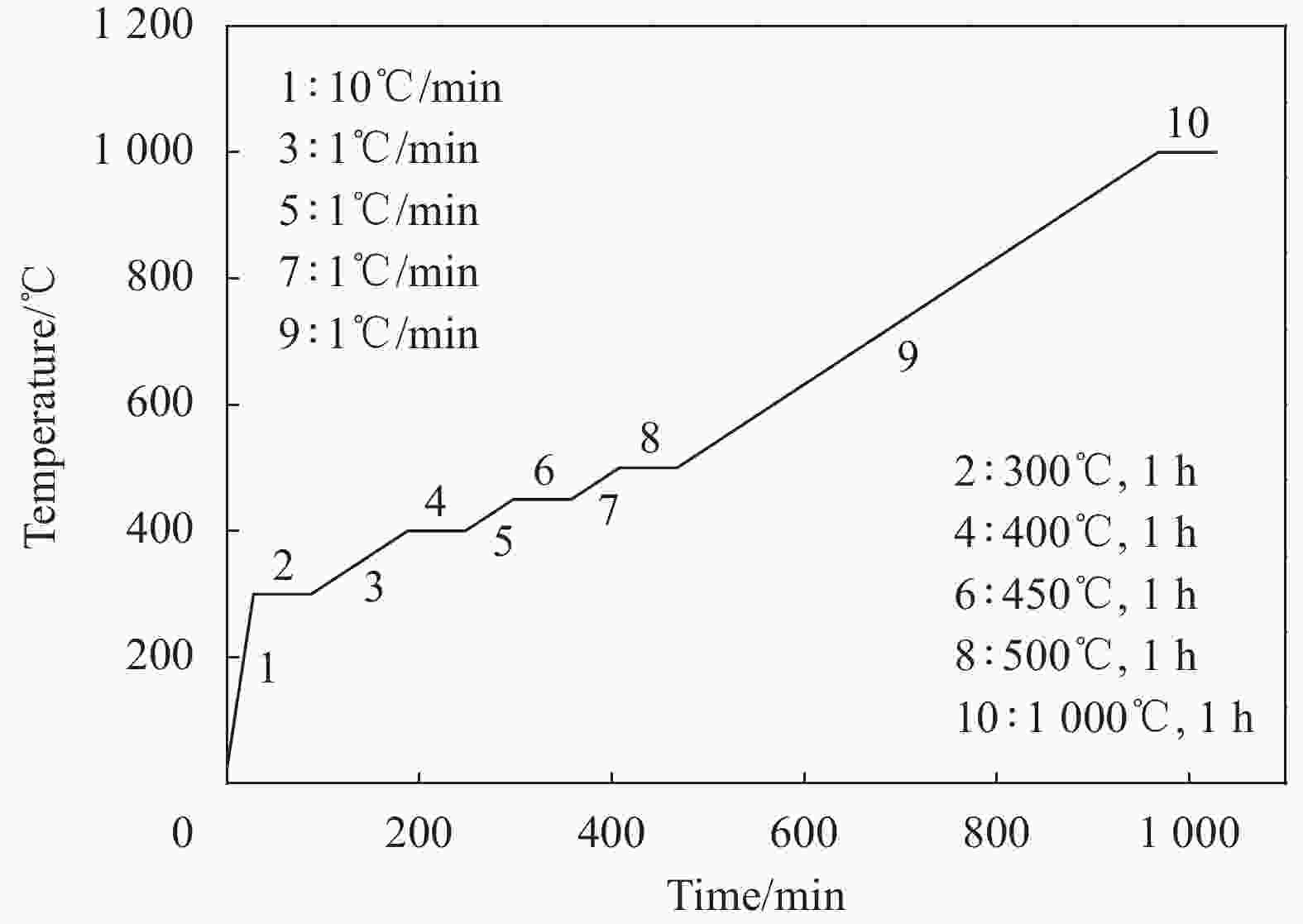

图 1 陶瓷试样的烧结温度程序

Figure 1. Sintering temperature program of the ceramic samples

下载: 全尺寸图片幻灯片

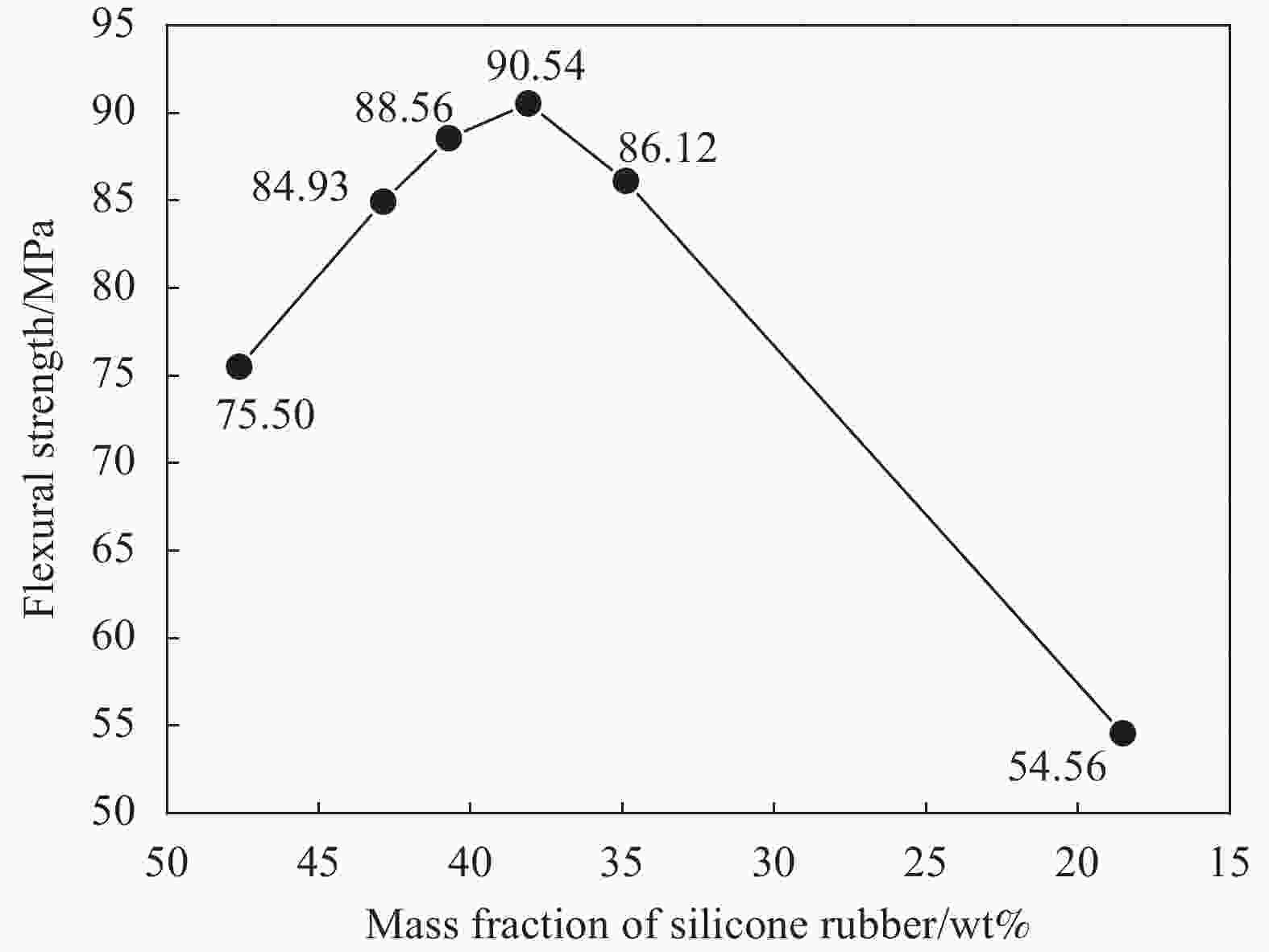

图 2 不同硅橡胶含量下陶瓷试样的弯曲强度

Figure 2. Flexural strength of ceramic samples with different mass fraction of silicon rubber

下载: 全尺寸图片幻灯片

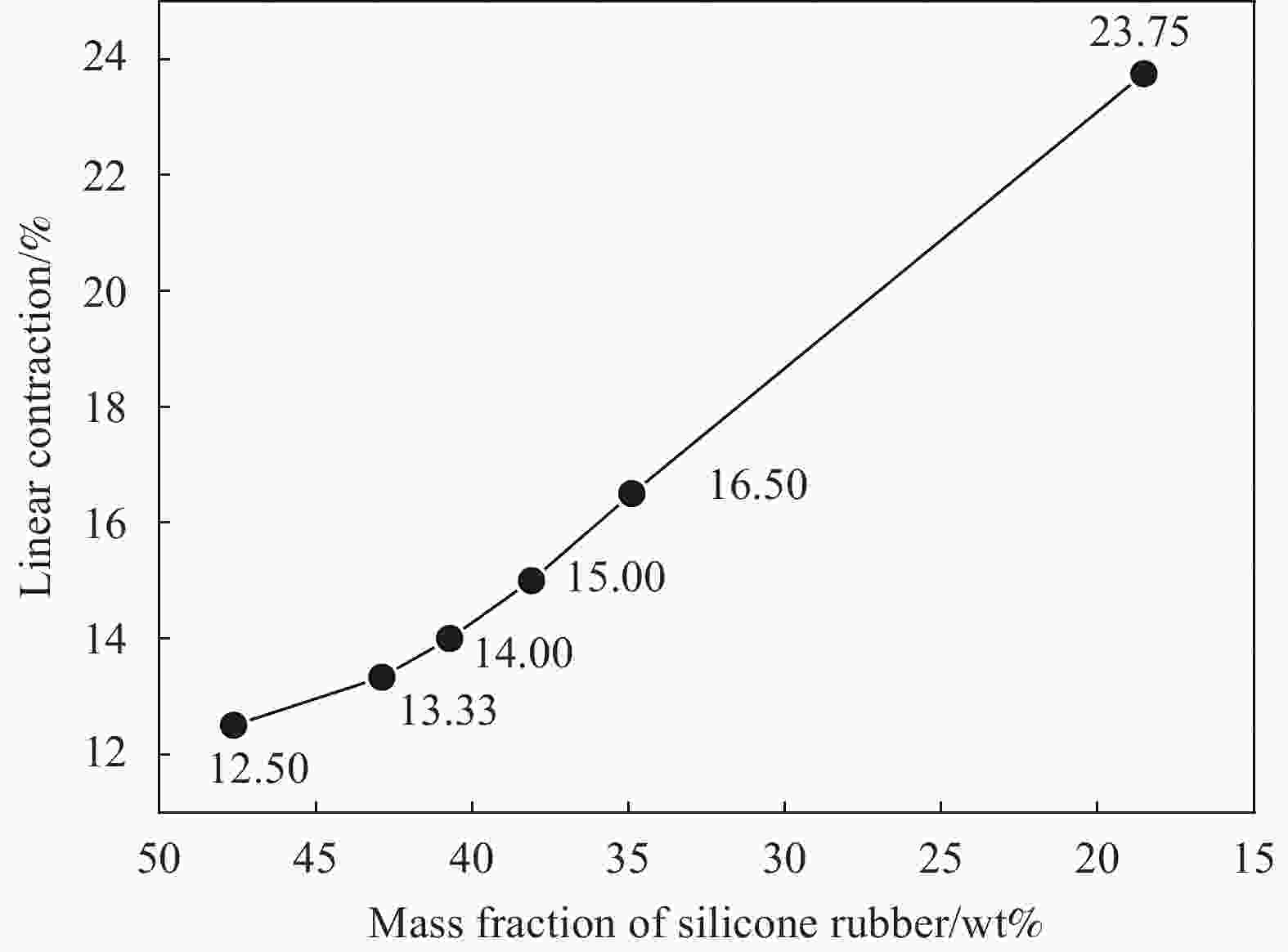

图 3 不同硅橡胶含量下陶瓷试样的线性收缩率

Figure 3. Linear contraction of ceramic samples with different mass fraction of silicon rubber

下载: 全尺寸图片幻灯片

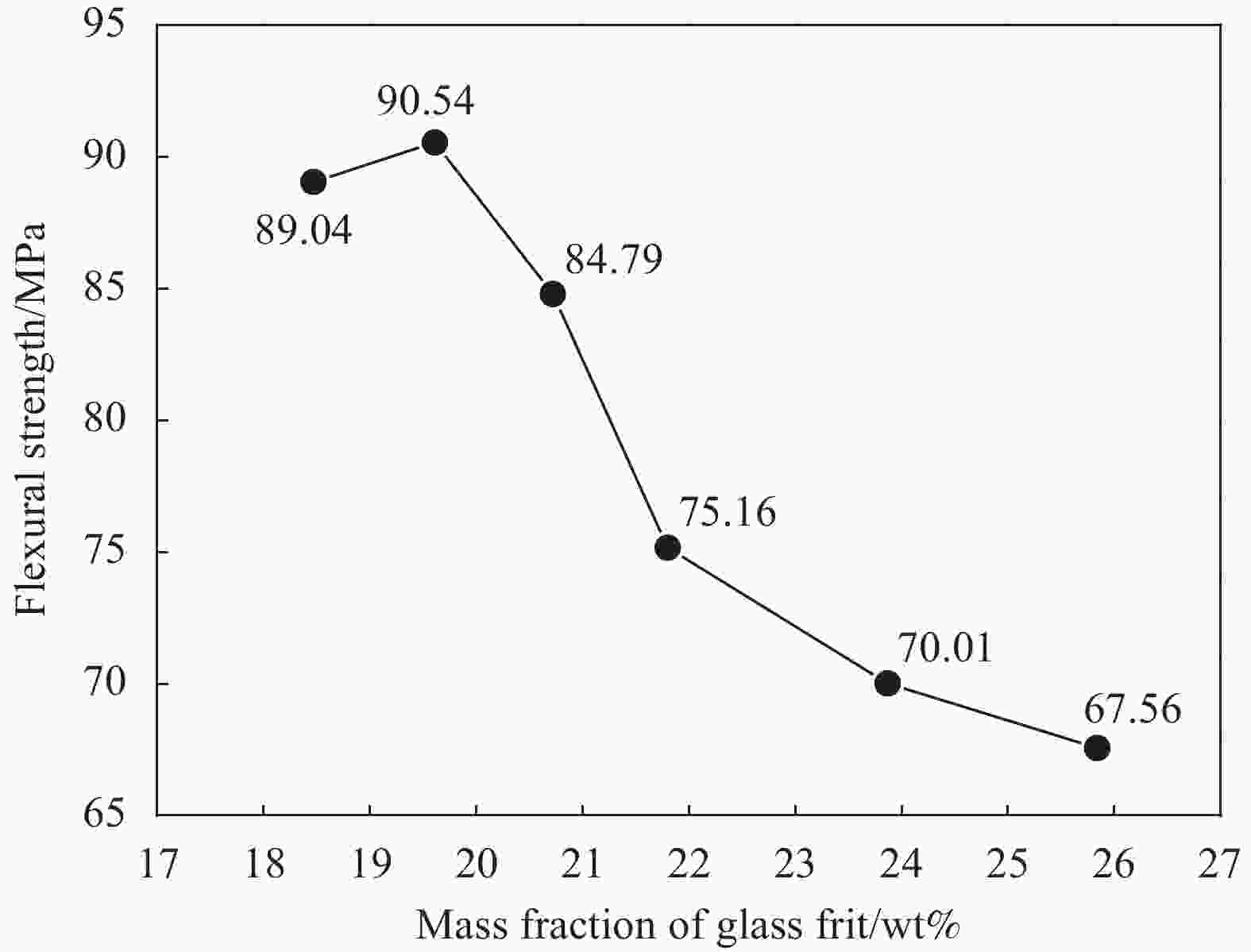

图 4 不同玻璃粉含量下陶瓷试样的弯曲强度

Figure 4. Flexural strength of ceramic samples with different mass fraction of glass frit

下载: 全尺寸图片幻灯片

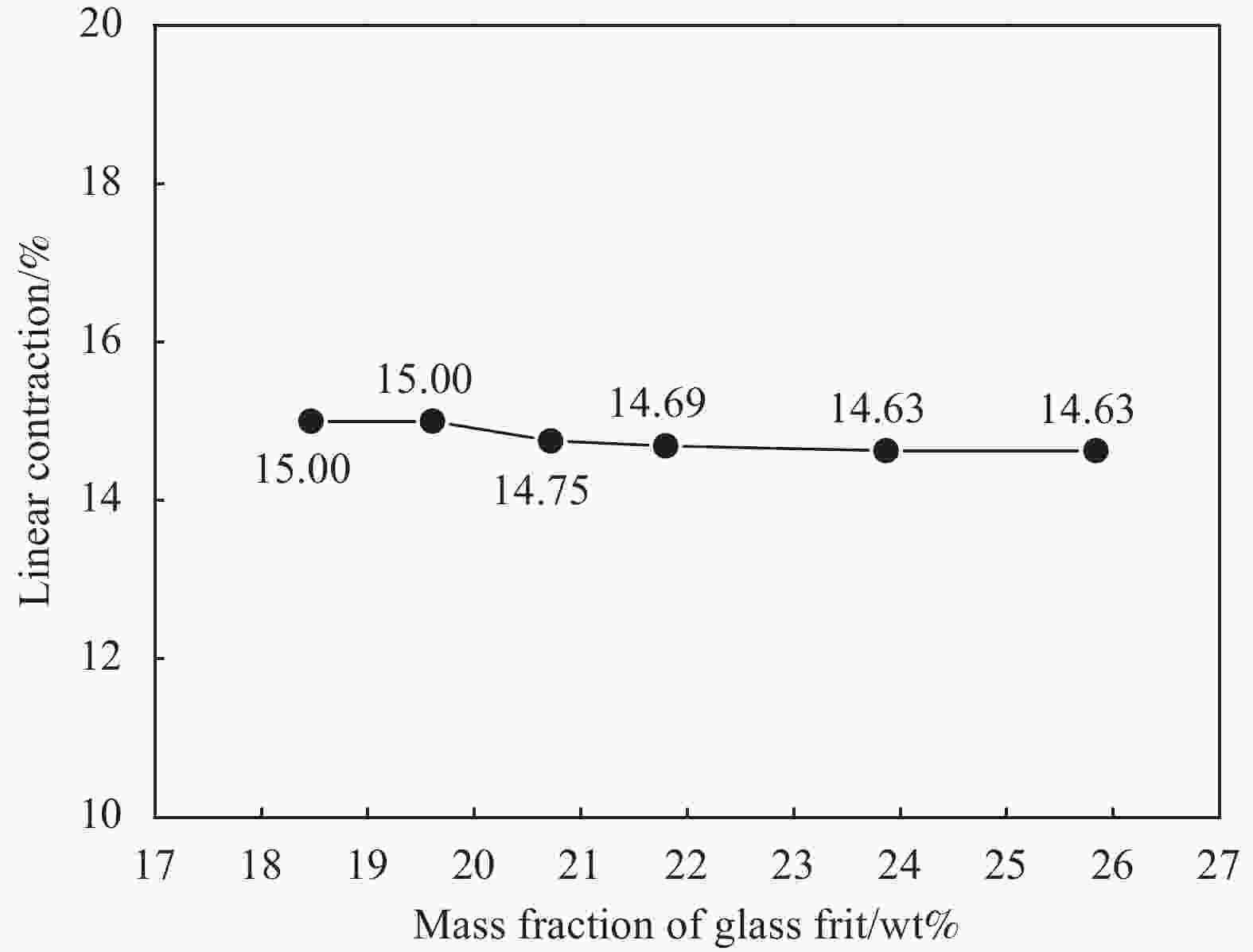

图 5 不同玻璃粉含量下陶瓷试样的线性收缩率

Figure 5. Linear contraction of ceramic samples with different mass fraction of glass frit

下载: 全尺寸图片幻灯片

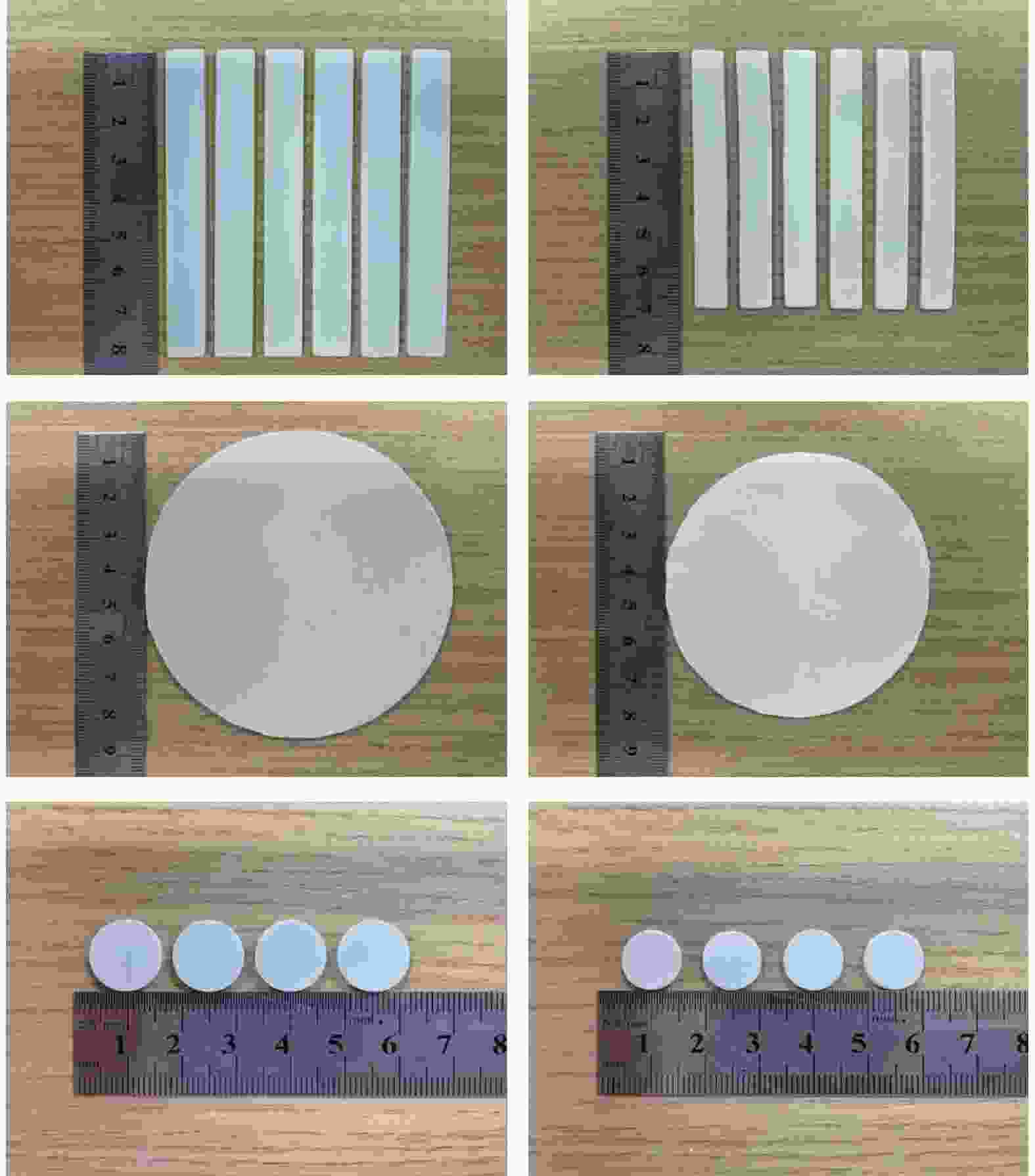

图 6 可加工前驱体(左)和陶瓷试样(右)的照片

Figure 6. Photos of machinable precursors (left) and ceramic samples (right)

下载: 全尺寸图片幻灯片

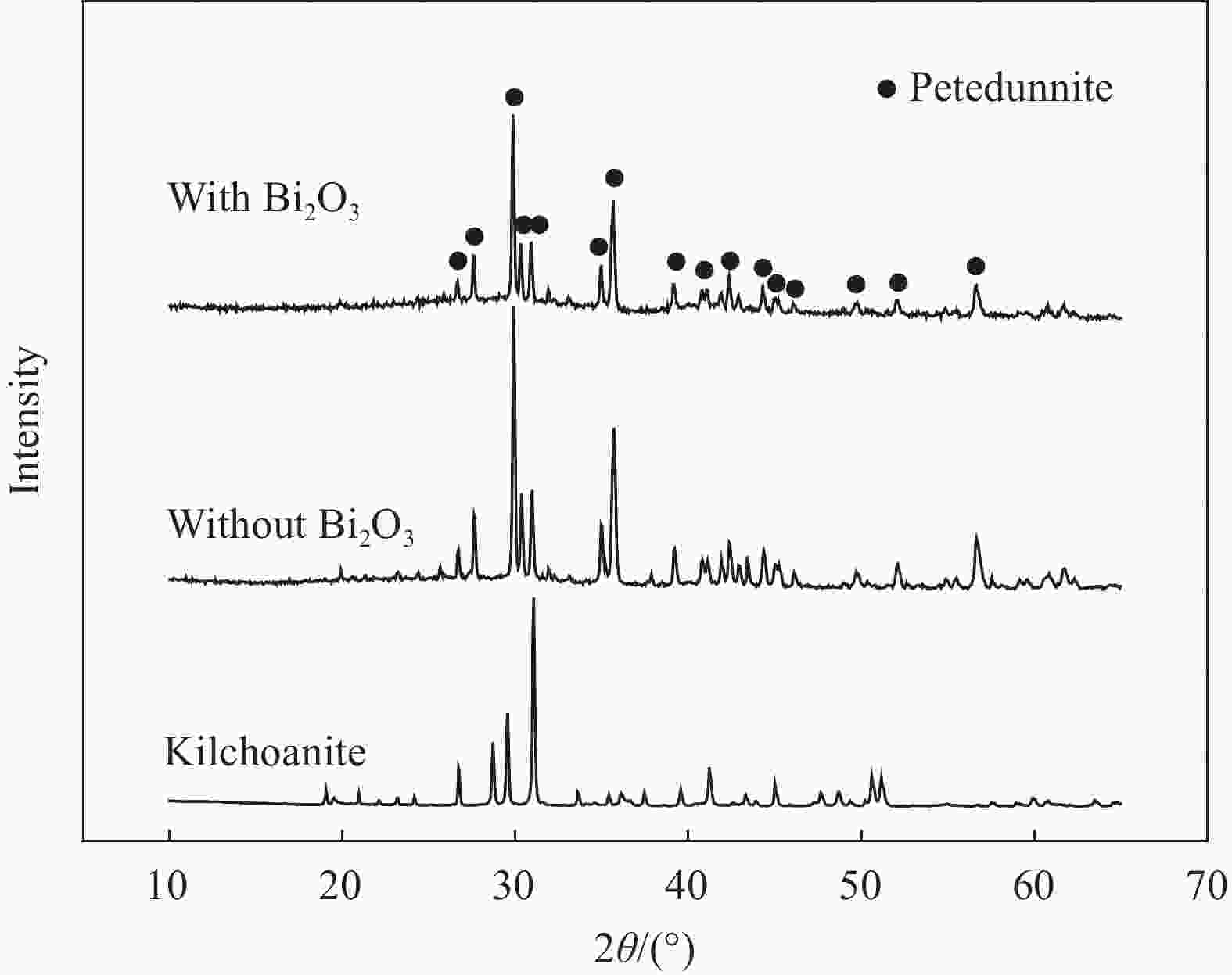

图 7 陶瓷试样与斜方硅钙石的XRD曲线

Figure 7. XRD patterns of the ceramic samples and kilchoanite

下载: 全尺寸图片幻灯片

图 8 陶瓷试样的表面形貌SEM照片

Figure 8. SEM images of surface microstructure of the ceramic samples

下载: 全尺寸图片幻灯片

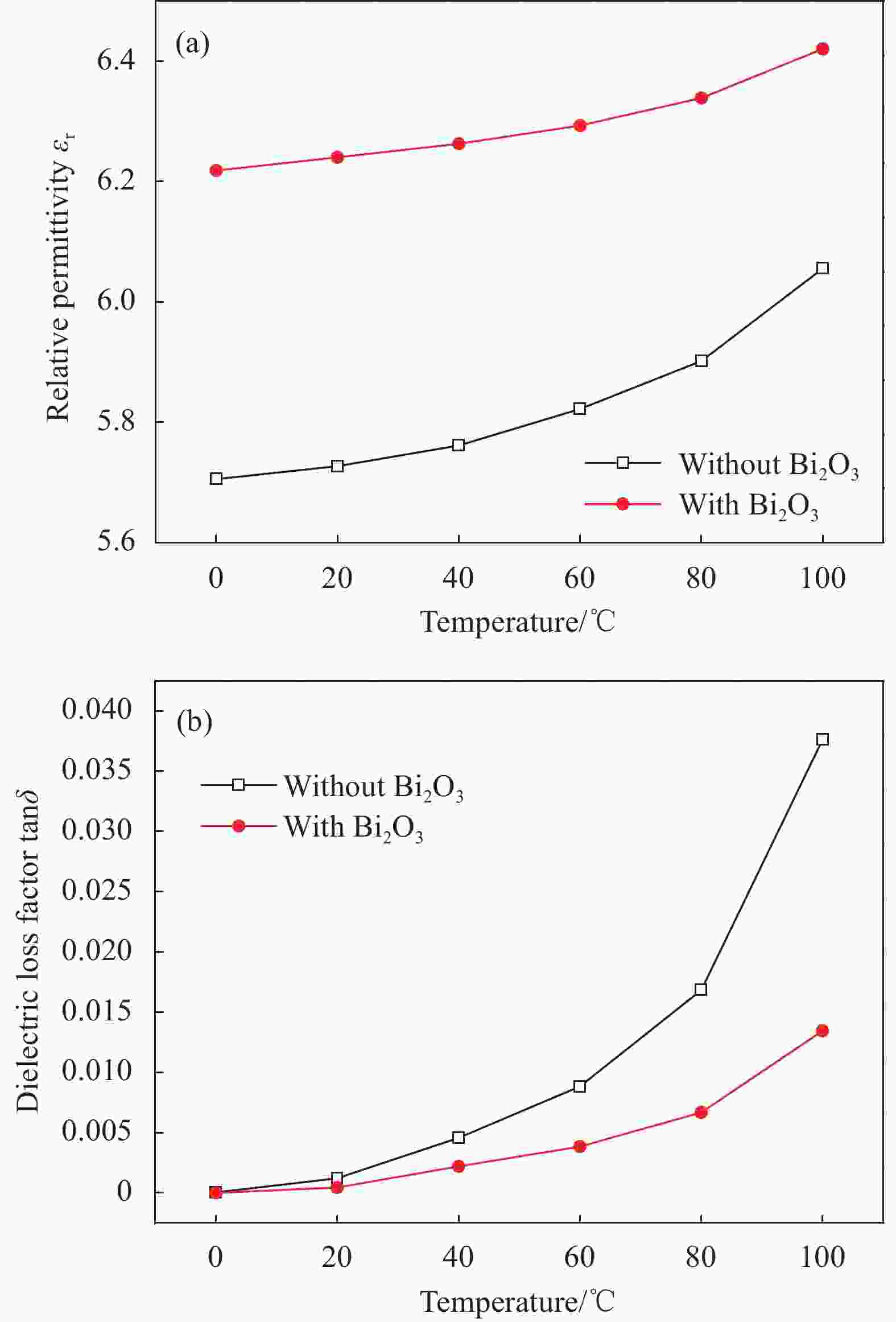

图 9 温度对陶瓷试样工频介电性能的影响

Figure 9. Effect of temperature on the dielectric properties of the ceramic samples at power frequency

下载: 全尺寸图片幻灯片

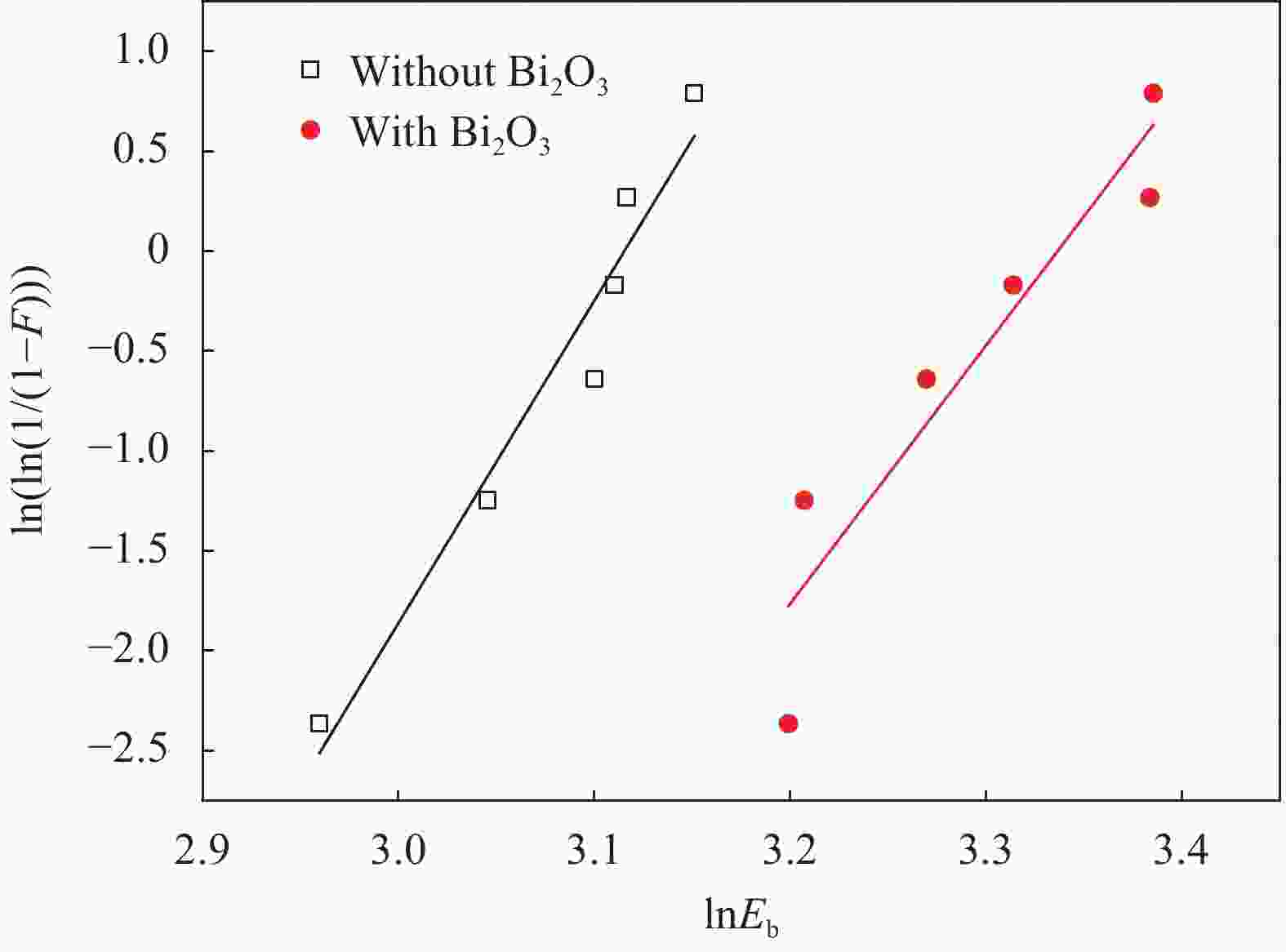

图 10 陶瓷试样工频击穿场强的Weibull分布(F为分布概率，E_b为击穿场强)

Figure 10. Weibull distribution of breakdown strength of the ceramic samples at power frequency (F is the distribution probability, E_b is the breakdown strength)

下载: 全尺寸图片幻灯片

表 1 硅橡胶基可陶瓷化复合材料的配方

Table 1. Formula of ceramizable silicone rubber composites

Sample	Mass ratio/g				W_x/wt%
Sample	Silicone rubber	Kilchoanite	Glass frit	Nano SiO₂	W_x/wt%
S1	100	50	30	30	47.62
S2	100	100	60	60	31.25
S3	100	117	70	70	28.04
S4	100	133	80	80	25.42
S5	100	150	90	90	23.26
S6	100	200	120	120	18.52
G1	100	117	65	70	18.47
G2	100	117	70	70	19.61
G3	100	117	75	70	20.72
G4	100	117	80	70	21.80
G5	100	117	90	70	23.87
G6	100	117	100	70	25.84
Notes: W_x is the mass fraction of silicone rubber for S1~S6 and the mass fraction of glass frit for G1~G6.

下载: 导出CSV
